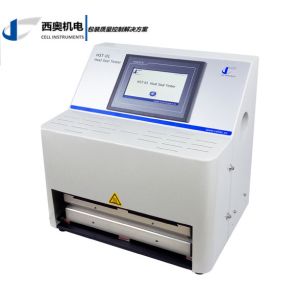

Cosmetic Packaging Heat Seal Tester Feature

1. 7 inch TFT touching screen makes parameter setting and operation easy and convenient for Heat Seal Tester.

2. PLC for precise dwell time and sealing pressure control

3. P.I.D. for precise sealing temperature control

4. Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating

5. Multiple groups of test parameters can be saved to reduce setting time and eliminate human error

6. Independent heating of upper and lower sealing jaws on the model of Heat Seal Tester.

7. Sealing jaw customization available in term of dimension, shape and surface

Cosmetic Packaging Heat Seal Tester Technical specifications

Sealing temperature Room Temperature ~ 300℃

Deviation ±0.2℃

Dwell time 0.1 s~9999s

Sealing pressure 0.15 MPa ~ 0.7 MPa

Sealing Jaws 330mm×10mm(Sealing Surface)(Customization Available)

Double Heating of Upper and Lower Jaws

Gas Pressure 0.7 MPa of Air

Dimensions 455mm (L) *320mm (W) *440mm (H)

Port Size Ф6 mm PU Hose

Power AC 220V 50Hz

Cosmetic Packaging Heat Seal Tester Standard

ASTM F2029, QB/T 2358, YBB 00122003
